NEST Simulation Results

We present here the results of the canonical circuit simulations with the different protocol presented in NEST simulations. Results vary according to the species, the state, and the neuron and synapse models used for the simulations. Fig. 2 shows a direct comparison of the mean firing rates for the different neuron and synapse models combination in the in-vitro state:

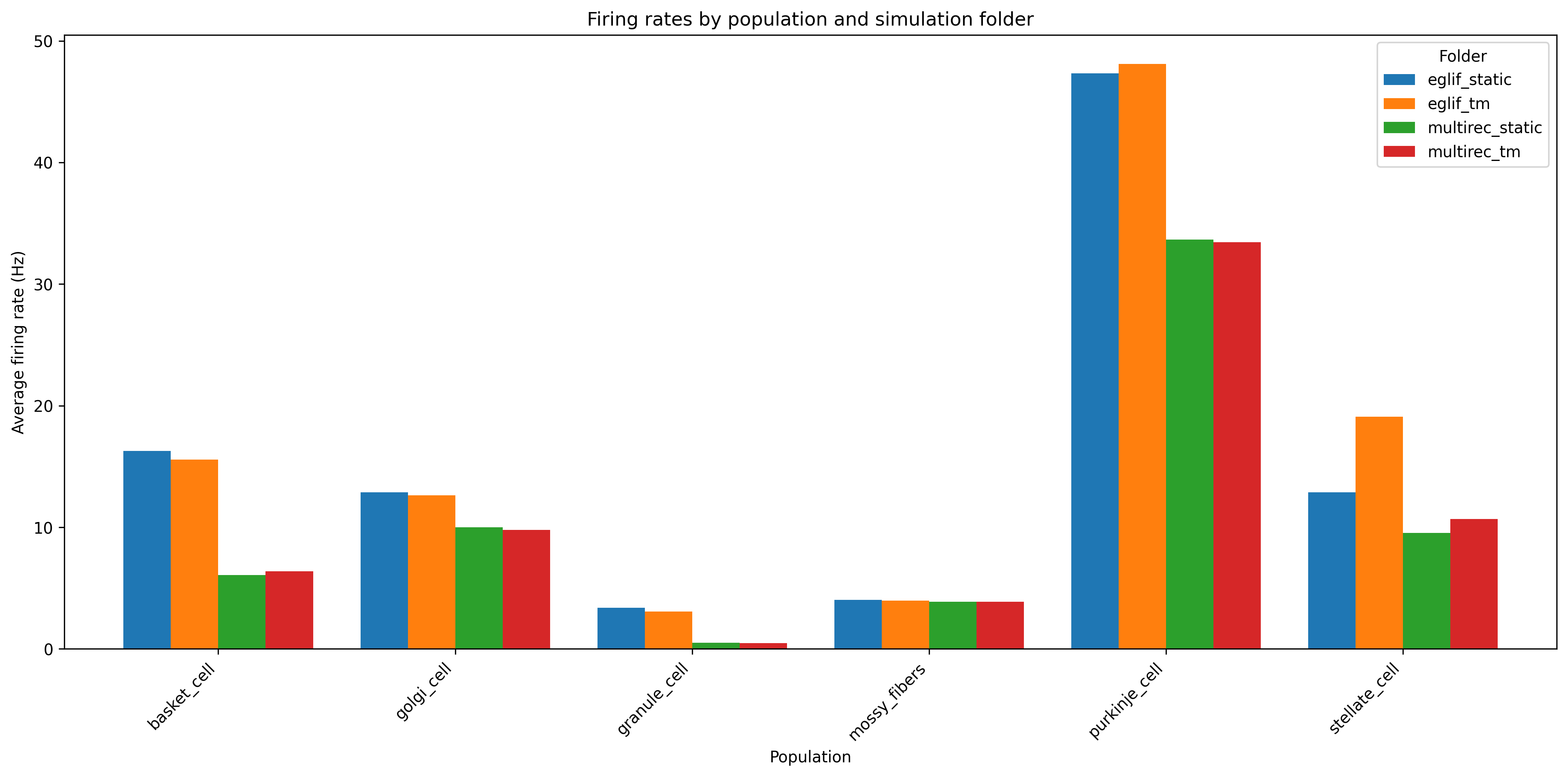

Fig. 2 Comparison of the firing rates of the different neuron population based on the neuron and synapse models used

We present below the results of the canonical circuits with neurons represented as eglif_cond_alpha_multisyn and are connected with static synapses (for in-vitro and awake states).

Basal activity

The results are the same with or without the Deep cerebellar nuclei regions as their activity does not effect the rest of the circuit. No basal activity changes are observed in the cerebellar network with Inferior Olive cells, because these cells presents no auto-rhythm [1] [2]. We also include the results of the Unipolar brush cell simulations (only in-vitro), as their effect on the other populations is limited.

For this simulation, the mean firing rates and mean ISI obtained for each neuron population are as follows (expressed as mean \(\pm\) standard deviation):

In-vitro state

Table 2 Results of the canonical circuit in basal activity

Cell name	Mean Firing rate (Hz)	Mean ISI (ms)
Mossy cell	\(4.0 \pm 1.4\)	\(250 \pm 140\)
Granule cell	\(3.4 \pm 3.4\)	\(330 \pm 270\)
Golgi cell	\(11 \pm 5.4\)	\(120 \pm 94\)
Purkinje cell	\(47 \pm 1.1\)	\(22 \pm 0.48\)
Basket cell	\(16 \pm 7.7\)	\(77 \pm 45\)
Stellate cell	\(13 \pm 11\)	\(180 \pm 240\)
DCNp	\(11 \pm 7.0\)	\(97 \pm 110\)
DCNi	\(11 \pm 1.2\)	\(90 \pm 11\)
Unipolar brush cell	\(0.21 \pm 0\)	\(1100 \pm 91\)

Awake state

Table 3 Results of the canonical circuit in basal activity

Cell name	Mean Firing rate (Hz)	Mean ISI (ms)
Mossy cell	\(4.0 \pm 1.4\)	\(250 \pm 140\)
Granule cell	\(3.4 \pm 3.4\)	\(330 \pm 270\)
Golgi cell	\(11 \pm 5.4\)	\(120 \pm 94\)
Purkinje cell	\(91 \pm 2.2\)	\(11 \pm 0.27\)
Basket cell	\(21 \pm 9.0\)	\(56 \pm 25\)
Stellate cell	\(18 \pm 14\)	\(120 \pm 140\)
DCNp	\(45 \pm 7.0\)	\(23 \pm 1.8\)
DCNi	\(13 \pm 1.2\)	\(81 \pm 4.1\)

Mossy fiber stimulus

Similar to the basal activity, we include the spiking results of the UBC (only in-vitro) and DCN populations as their activity has little to no effect on the rest of the circuit. IO cells are here too silent.

For this simulation, during the stimulus, the mean firing rates and mean ISI obtained for each neuron population are as follows (expressed in mean \(\pm\) standard deviation):

In-vitro state

Table 4 Results of the canonical circuit during stimulus of the mossy

Cell name	Mean Firing rate (Hz)	Mean ISI (ms)
Mossy cell	\(45 \pm 74\)	\(6.5 \pm 3.\)
Granule cell	\(21 \pm 46\)	\(9.1 \pm 7.3\)
Golgi cell	\(52 \pm 45\)	\(17 \pm 12\)
Purkinje cell	\(59 \pm 11\)	\(17 \pm 3.7\)
Basket cell	\(59 \pm 88\)	\(12 \pm 7.3\)
Stellate cell	\(52 \pm 47\)	\(14 \pm 7.5\)
DCNp	\(24 \pm 11\)	\(30.0 \pm 4.2\)
DCNi	\(9.4 \pm 10\)	not enough spikes per neuron
Unipolar brush cell	\(16 \pm 7.9\)	not enough spikes per neuron

Awake state

Table 5 Results of the canonical circuit during stimulus of the mossy

Cell name	Mean Firing rate (Hz)	Mean ISI (ms)
Mossy cell	\(45 \pm 74\)	\(6.5 \pm 3.\)
Granule cell	\(21 \pm 46\)	\(9.1 \pm 7.3\)
Golgi cell	\(52 \pm 45\)	\(17 \pm 12\)
Purkinje cell	\(140 \pm 33\)	\(7.1 \pm 1.9\)
Basket cell	\(77 \pm 54\)	\(8.7 \pm 5.9\)
Stellate cell	\(71 \pm 55\)	\(9.6 \pm 6.2\)
DCNp	\(57 \pm 16\)	\(20 \pm 6.2\)
DCNi	\(10 \pm 10\)	not enough spikes per neuron

Eyeblink Classical Conditioning

In-vitro state

Table 6 Results of the canonical circuit in in-vitro state with DCN and IO during stimulus of the mf and the IO

Cell name	Mean Firing rate (Hz) [CS]	Mean ISI (ms) [CS]	Mean Firing rate (Hz) [CS+US]	Mean ISI (ms) [CS+US]
Mossy cell	\(44 \pm 13\)	\(22 \pm 8.0\)	\(38 \pm 60\)	\(3.1 \pm 2.3\)
Granule cell	\(21 \pm 30\)	\(36 \pm 36\)	\(20 \pm 48\)	\(6.1 \pm 1.1\)
Golgi cell	\(42 \pm 17\)	\(28 \pm 13\)	\(26 \pm 50\)	\(8.7 \pm 0.2\)
Purkinje cell	\(55 \pm 5.9\)	\(18.0 \pm 2.0\)	\(140 \pm 100\)	\(3.1 \pm 2.8\)
Basket cell	\(66 \pm 24\)	\(19 \pm 9.5\)	\(61 \pm 49\)	not enough spikes per neuron
Stellate cell	\(46 \pm 43\)	\(31 \pm 31\)	\(48 \pm 57\)	\(7.2 \pm 1.1\)
DCNp	\(30 \pm 4.7\)	\(33 \pm 5.2\)	\(33 \pm 47\)	not enough spikes per neuron
DCNi	\(11 \pm 2.3\)	\(93 \pm 11\)	\(12 \pm 32\)	not enough spikes per neuron
IO	0	no spikes	\(270 \pm 120\)	\(1.9 \pm 0.5\)

Awake state

Table 7 Results of the canonical circuit in awake state with DCN and IO during stimulus of the mf and the IO

Cell name	Mean Firing rate (Hz) [CS]	Mean ISI (ms) [CS]	Mean Firing rate (Hz) [CS+US]	Mean ISI (ms) [CS+US]
Mossy cell	\(43 \pm 13\)	\(23 \pm 8.1\)	\(46 \pm 68\)	\(2.8 \pm 1.8\)
Granule cell	\(22 \pm 35\)	\(34 \pm 37\)	\(22 \pm 50\)	\(6.4 \pm 1.2\)
Golgi cell	\(42 \pm 21\)	\(29 \pm 15\)	\(22 \pm 45\)	\(7.0 \pm 0.0\)
Purkinje cell	\(140 \pm 14\)	\(7.1 \pm 0.71\)	\(300 \pm 150\)	\(2.7 \pm 1.9\)
Basket cell	\(83 \pm 49\)	\(19 \pm 21\)	\(55 \pm 54\)	\(6.3 \pm 1.1\)
Stellate cell	\(74 \pm 68\)	\(22 \pm 24\)	\(57 \pm 81\)	\(5.6 \pm 1.3\)
DCNp	\(59 \pm 7.6\)	\(17 \pm 2.1\)	\(65 \pm 56\)	\(6.0 \pm 2.7\)
DCNi	\(11 \pm 2.0\)	\(90 \pm 13\)	\(9.1 \pm 29\)	not enough spikes per neuron
IO	0	no spikes	\(350 \pm 150\)	\(1.9 \pm 0.78\)

References

[1]

De Gruijl, J. R., Bazzigaluppi, P., de Jeu, M. T., & De Zeeuw, C. I. (2012). “Climbing fiber burst size and olivary sub-threshold oscillations in a network setting.” PLoS computational biology, 8(12), e1002814. https://doi.org/10.1371/journal.pcbi.1002814

[2]

Lefler, Y., Torben-Nielsen, B., & Yarom, Y. (2013). “Oscillatory activity, phase differences, and phase resetting in the inferior olivary nucleus.” Frontiers in systems neuroscience, 7, 22. https://doi.org/10.3389/fnsys.2013.00022
